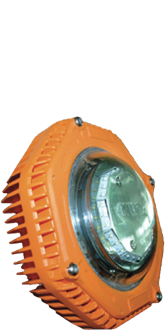

Ex Floodlight - FlutLED-Ex 60W - Zone 1 + 2 + 21 + 22

FlutLED-Ex 60W is suitable for all areas that require efficient and extremely robust Ex-safe lighting with outstanding illumination. Areas of application include refineries, on drilling platforms, in the energy and chemical industry, in fire-fighting, in disaster protection, in tunnels and in ports.

Product characteristics

  • Thanks to their compact shape, the FlutLED-Ex 60W are especially suitable for use in small and confined spaces
  • Reduced dazzle thanks to anti-glare surface, making them especially suitable for applications involving direct visual contact with the light source
  • Casing made from highly stable aluminium alloy for applications in corrosive environments
  • Shock and vibration-resistant, hardened glass reduces the risk of premature failure
  • Explosion-protected, fire-resistant, water and salt water resistant, dust-proof

Technical data
Labelling 94/9/EG: EX II 2 G - Ex d IIC T5 Gb (Zone 1)
EX II 2 D - Ex t IIIC T95°C Db (Zone 21)
Light source OSRAM LED
System output 60W
Luminous flux 6600lm
LED Power 110lm/W
Light colour 5400-6400K
Beam Angle 80° oder 120°
Input voltage

24~48 V AC/DC oder
100~277 V AC (50/60Hz)
Lifetime >50.000h
Type of protection IP66
Protection class I
Weight approx. 3,5kg
Dimensions H x D 206 x 220 mm
Temperature range
for operation
-40° up to +55°C

Housing Pressure die-cast aluminium
Cover Glass
Colour reproduction >80R

Please make absolutely sure you take note of the operating instructions that accompany the products!

Specification Table

Loading Table...

Technical Drawings
